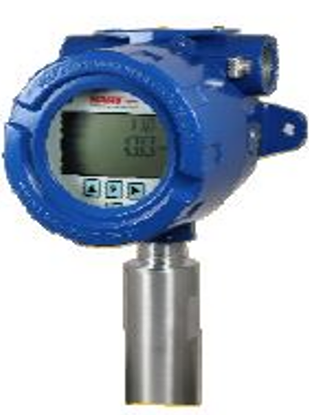

HRT1-Rate Indicator/Totalizer with HART® Communication Protocol

Provides rate and total flow indication. Use with Hoffer HO Series for Liquid flow meters for Precision flow measurement of industrial liquid applications within the process industries.

Back to listing

Description

FEATURES

  • HART® Field Communication Protocol.
  • 5 Digit Rate, 8 Digit Totalizer LCD display with configurable decimal point location.
  • 8 Digit, Non-resettable Grand Total display.
  • Pulse Input supports turbine as well as many other pulse generating flowmeters.
  • 4-20mA analog output.
  • Up to 20 Point Linearization.
  • Optional scaled pulse output representing an increment of volume for each pulse.
  • Two Optional Alarm Outputs configurable for Rate or Total.
  • Magnetically operated reed switch for Total reset.
  • Internal battery backup.
  • Configuration and Grand Total stored in non-volatile memory; Grand Total saved once per minute.
  • Various enclosure options available including Certified Systems for Explosion-proof enclosure options
